YD100-21-8F45P

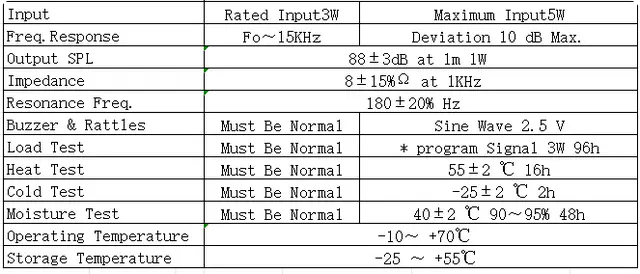

RYD YD100-21-8F45P is a 102×102×35mm automotive full-range loudspeaker rated 3W (5W maximum) for cabin audio and vehicle electronics. It offers 8Ω impedance, 180Hz resonance, Fo~15kHz response and 88±3dB sensitivity at 1m/1W. The slim 35mm depth helps it fit shallow mounting positions behind door trims or instrument panels, and the wide Fo~15kHz range keeps both voice guidance and media audio balanced. Applications include passenger car audio positions, commercial vehicle cabins, telematics units and automotive aftermarket upgrades. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity tuning, impedance, connection methods and waterproof or dustproof treatment; new designs can be developed for volume programs. Contact RYD for position-specific matching.
