YD100-13-4F60U

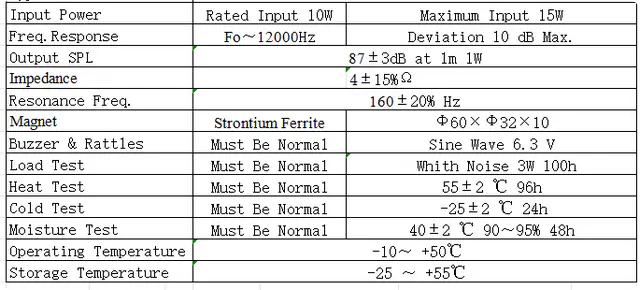

RYD YD100-13-4F60U is a 102×102×51mm automotive loudspeaker supplied with a φ136mm front cover for convenient panel mounting. Rated input is 10W with 15W maximum, impedance 4Ω, resonance 160Hz, response Fo~12kHz, sensitivity 87±3dB at 1m/1W, and the magnetic circuit uses a strontium ferrite magnet Ф60×Ф32×10mm. The included front cover simplifies installation in door panels, dashboards and equipment housings, reducing assembly steps for vehicle audio lines and aftermarket projects, and the driver also serves industrial and consumer equipment that benefits from an integrated mounting flange. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection style and waterproof or dustproof level; volume programs may include new development. Contact RYD for cover and fitment details.
