YD100-3-8

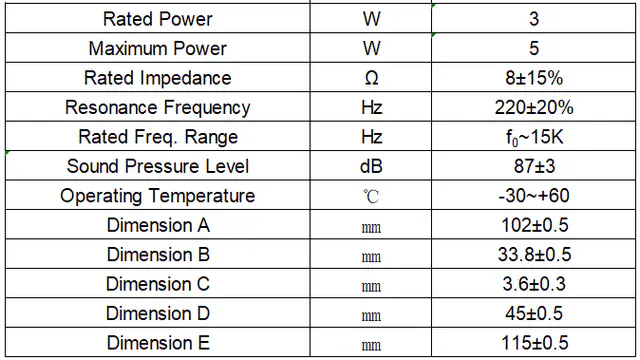

RYD YD100-3-8 is a 102×102×33.8mm square full-range loudspeaker rated 3W (5W maximum), an economical driver for smart home, consumer and light industrial audio. Specifications: 8Ω impedance, 220Hz resonance, Fo~15kHz response, 87±3dB sensitivity, and a -30°C to +60°C operating range. It is well matched to background music zones, voice prompt equipment, educational devices and panel-mounted audio where moderate output and simple integration matter. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection options, and waterproof or dustproof protection; volume programs may include new development. Contact RYD for project matching.
