YD57M23-5PP4

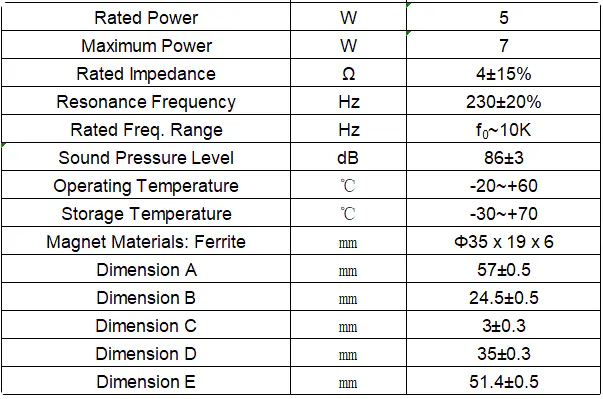

RYD YD57M23-5PP4 is a φ57×24.5mm full-range loudspeaker with a ferrite magnetic circuit (Φ35×19×6mm magnet) for consumer audio, smart home and automotive applications. Rated power is 5W with 7W maximum, impedance 4Ω, resonance 230Hz, response Fo~10kHz and sensitivity 86±3dB. The 230Hz resonance reaches deeper bass than many slim 57mm units, making it suitable for compact Bluetooth speaker enclosures, smart speaker modules, desktop audio and vehicle auxiliary sound. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity and impedance tuning, connection style, and waterproof or dustproof options; new designs can be developed for volume programs. Ask RYD for enclosure volume recommendations.
