YD50M-22Z-16A

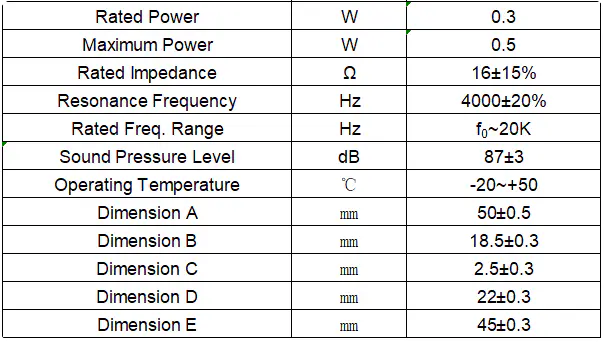

RYD YD50M-22Z-16A is a φ50×18.5mm slim loudspeaker with 16Ω impedance for portable consumer electronics, IoT nodes and medical devices. Rated power is 0.3W with 0.5W maximum, sensitivity is 87±3dB, and the response runs from Fo to 20kHz, keeping voice and alert signals intelligible at very low drive levels. The 16Ω coil is helpful where several speakers share one amplifier channel or where current draw must stay minimal, such as battery-powered instruments, reminder devices and compact voice modules. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity, impedance, connection method and waterproof or dustproof grade can be tailored to your design; new designs can be developed for volume programs. Ask RYD for dimensional drawings and integration guidance.
