SPK100-15-8F55C

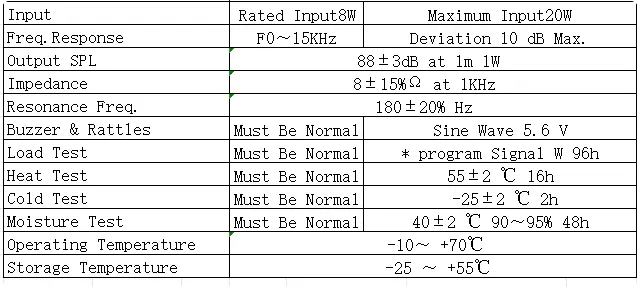

RYD SPK100-15-8F55C is a 102×102×38mm square full-range loudspeaker delivering high output for industrial equipment and commercial audio systems. Rated input is 8W with 20W maximum, impedance 8Ω, resonance 180Hz, response Fo~15kHz and sensitivity 88±3dB at 1m/1W — a combination that suits voice broadcasting, public address endpoints and machine status sound where audibility is critical. The square frame mounts easily into panels, control cabinets and equipment faces, and the driver also serves consumer audio products that need an efficient 100mm-class unit. Manufactured under the RYD ISO9001 quality system with RoHS compliant materials. Customization available: sensitivity and impedance tuning, connection methods, lead wire length, and waterproof or dustproof grade; new designs can be considered for volume programs. Contact RYD to discuss output targets for your installation.
